AVMATRIX Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1″ IPS Display
₵12,399.00
Key Features
-
Compact 4-Channel Video Switcher
-

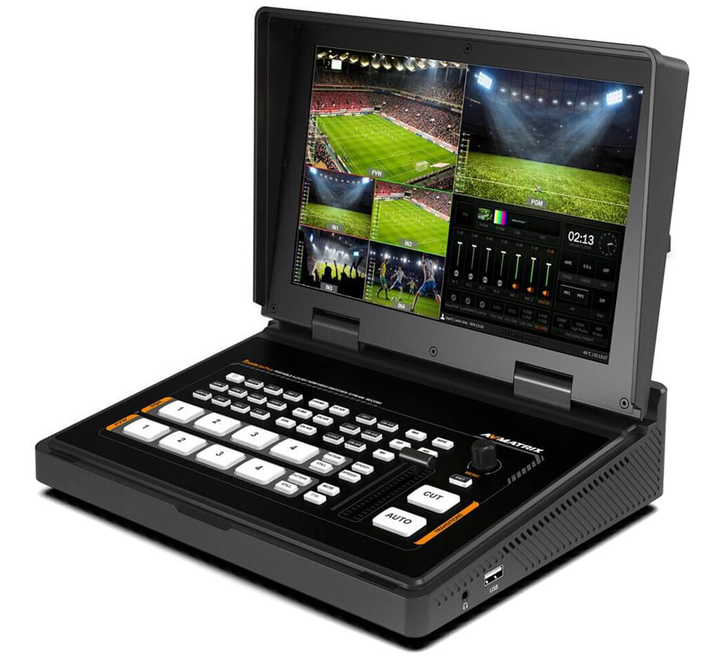

Folding 10.1″ IPS LCD Display
-
2 x 3G-SDI & 2 x HDMI Inputs
-
1 x HDMI Multiview & 2 x HDMI PGM Out
-
1 x USB-C Out for Capture & Streaming
Switch up to two HDMI and two 3G-SDI video inputs while monitoring the program feed with the Shark S4 PLUS 4-Channel SDI/HDMI Video Switcher with 10.1″ IPS Displayfrom AVMATRIX. This model features a folding design with a 10.1″ IPS LCD screen on the lid. Use the USB-C output together with your computer for capture and streaming. This compact switcher supports up to 1080p60 video input and output with embedded audio and offers audio mixing using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.
USB Capture & Streaming
Built-in USB-C port can be used to connect the switcher to a computer for USB capture and streaming using software like OBS, Skype, Teams, VLC, Zoom, or vMix.
10.1″ Full HD IPS Display
The switcher features a 10.1″ 1920 x 1080 IPS LCD display that provides multiview, preview, program, audio meters, time clock, and menu configuration.
USB and SD Card Recording
Record your program to an SSD or flash drive in MP4 format using the USB-A recording output, or utilize an optional SD card for in the built-in SD card recording slot.
Live Stream via Ethernet
The LAN port supports IP streaming via RTMP or SRT protocols, allowing you to easily live stream to popular platforms such as YouTube, Skype, Facebook, Twitch, and more.
Software Remote Control
Offers easy control of all settings and operations through the control software, including transitions, audio configurations, media management, and more.
Multiple Interfaces

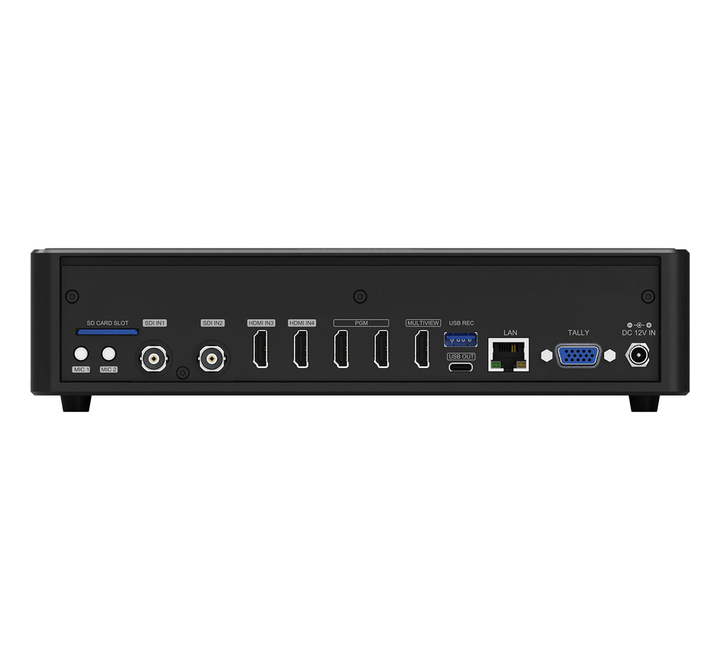

Multiple interfaces include two 3G-SDI inputs, two HDMI inputs, Program outputs, multiview output, audio inputs, streaming, and recording ports. The outputs can all be configured to pass input, preview, program, clean program, and color bars.
Other Features
- Enhanced chroma key
- Professional audio mixer with embedded and analog audio inputs
- Import up to 39 default patterns, 16 imported images, 16 captured images, and two color generators via USB
- PiP, PoP, logo overlay, transition effects
Applications
- Broadcast
- Education
- Conference
- Social media/vlogging
- Live sports
- House of worship
- Live events
