Accessories, video switcher

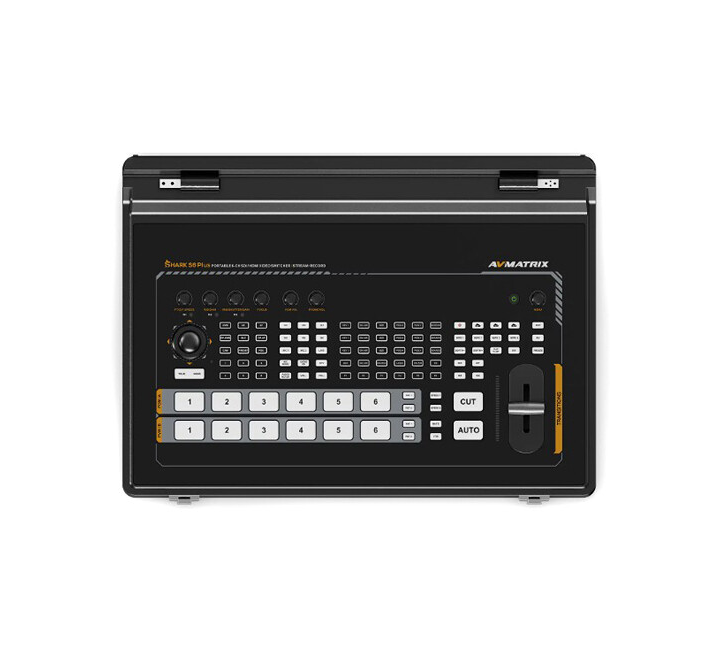

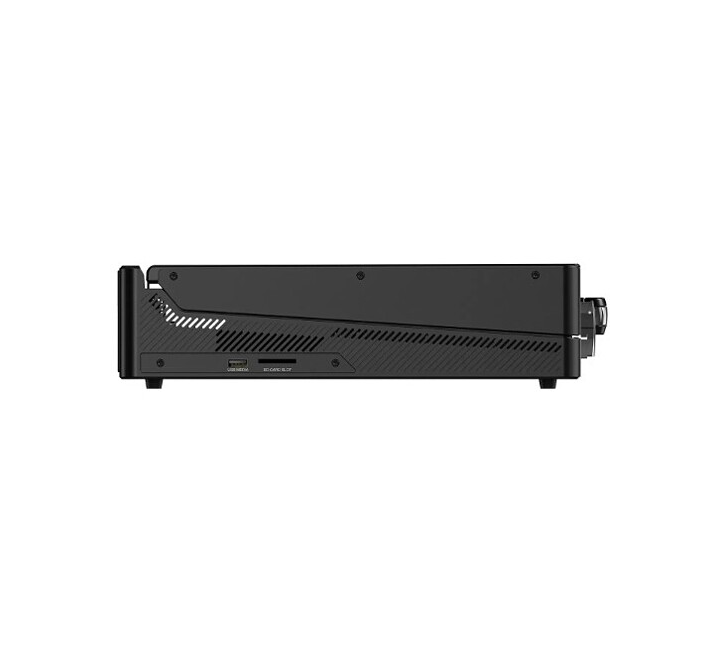

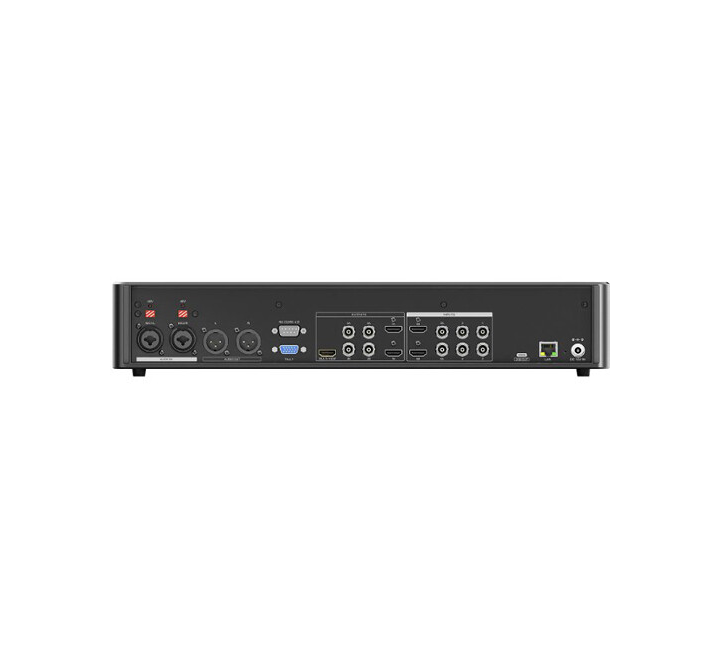

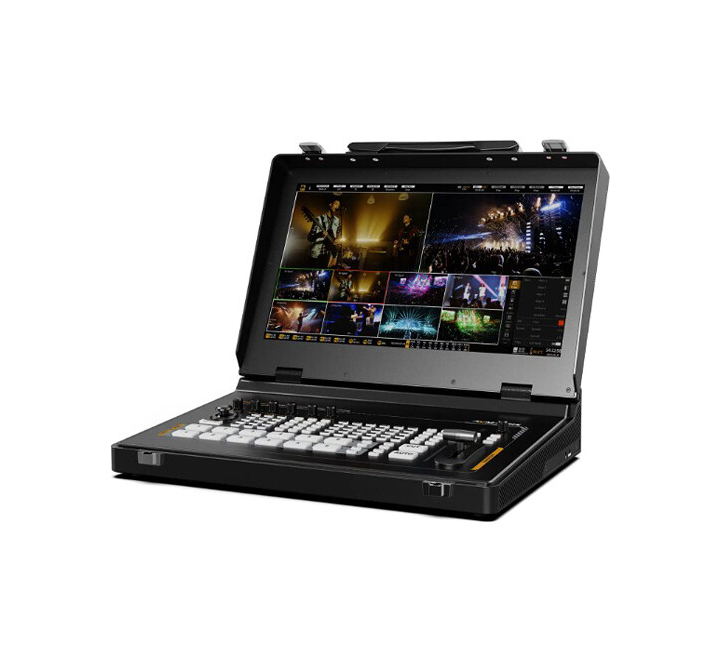

AVMATRIX SHARK S6 PLUS 6-Channel SDI/HDMI Portable Video Switcher with 17.3″ Display
₵24,499.00
Key Features
-
Video Switcher for Streaming & Recording
-
17.3″ FHD IPS Multiview Display
-
Four SDI & Two 4K HDMI Inputs
-
Four SDI, Two 4K HDMI, USB-C Outputs
-
USB, SD & SATA Recording Support
Pairing functionality with portability, the SHARK S6 PLUS 6-Channel SDI/HDMI Portable Video Switcher with 17.3″ Display from AVMATRIX is a powerful 8-channel video switcher designed for professionals who need real-time control in live production environments. Featuring four 3G-SDI and two 4K HDMI inputs, it accommodates a wide range of broadcast and camera sources, while four 3G-SDI, one HDMI multiview, two HDMI PGM, and USB-C webcam/streaming outputs provide flexible signal routing and convenient monitoring on the built-in 17.3″ FHD IPS display.
Video Streaming and Recording
- Four 3G-SDI and two 4K HDMI input ports
- Four SDI, one HDMI multiview, and two HDMI PGM output ports
- RTMP, SRT, and RTSP streaming support
- USB and SD recording options
- USB-C as webcam input and streaming via Windows, Linux, and macOS
Advanced Functionality
- Up to six key layers with adjustable size and positioning
- Chroma-key, Luma key, and logo overlay effects
- Customizable PiP windows
- T-bar, auto, and cut transition modes
- Audio mixing between embedded, XLR, and 3.5mm line inputs
Compatibility
- PTZ camera control via VISCA, ONVIF, Pelco P/D
- Tally and RS-422/RS-232 control output ports
- 48V phantom power via XLR-1/4″ combo inputs for condenser mics
- Headphone and balanced audio output
